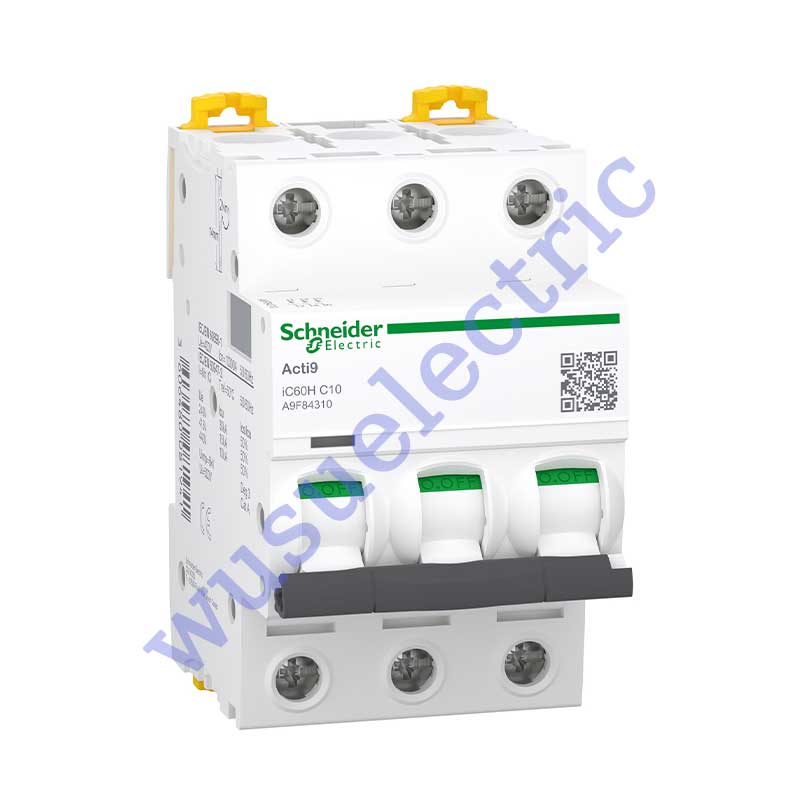

Schneider A9F84310 miniature circuit breaker

• Poles: 3P (3 protected poles)
• Rated Current: 10A
• Tripping Curve: Type C
• Breaking Capacity: 30kA (220–240VAC, EN/IEC 60947-2), 10kA (400VAC, EN/IEC 60898-1)
• Standards: EN/IEC 60898-1 and EN/IEC 60947-2
• Insulation Voltage (Ui): 500VAC
• Limitation Class: 3 (per EN/IEC 60898-1)
• Terminal Type: Double tunnel screw terminals
• Indicators: VisiTrip fault indicator, VisiSafe physical disconnect strip
• Mechanical Endurance: 20,000 cycles
• Electrical Endurance: 10,000 cycles
• Mounting: DIN rail
• Width: 6 x 9mm pitches (54mm)
• Protection Rating: IP20 (at terminals)
• Pollution Degree: 3
• Overvoltage Category: IV
• Color: White (RAL9003)
• Dimensions: 54mm (W) × 85mm (H) × 78.5mm (D)
• Weight: 0.375 kg
• Operating Temperature: -35°C to 70°C
• Storage Temperature: -40°C to 85°C

This Acti9 iC60H is a multistandard low voltage miniature circuit breaker (MCB) with double tunnel terminals. It is a 3P circuit breaker with 3 protected poles, 10A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 30kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 10000A at 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles.
